Wireless Data Receiver

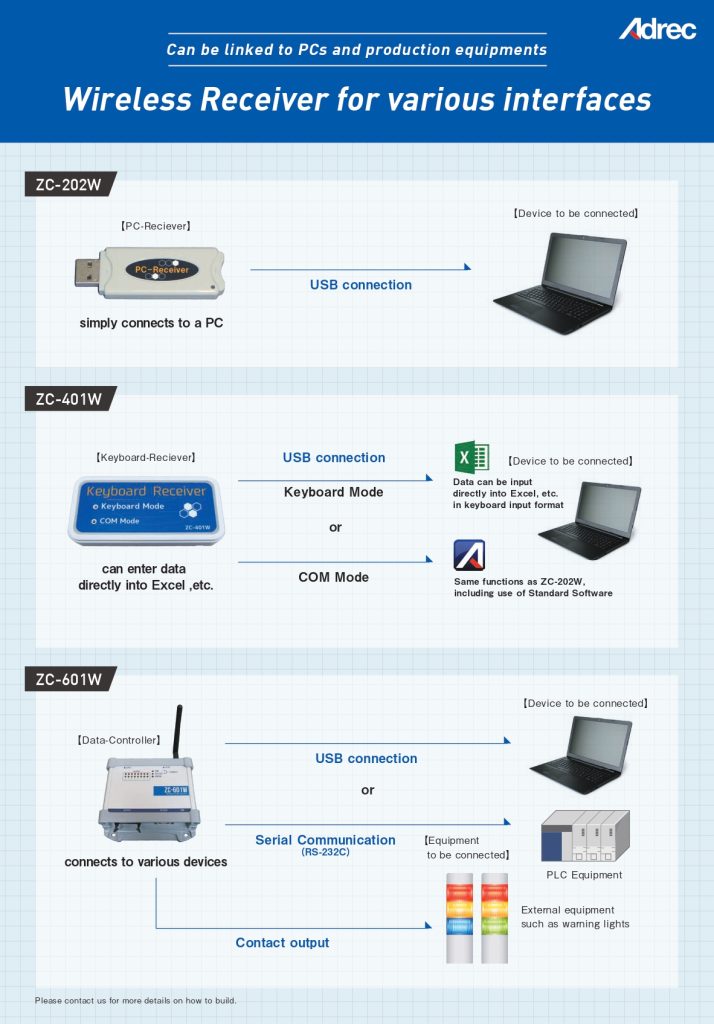

Various Interfaces

ZC-202W

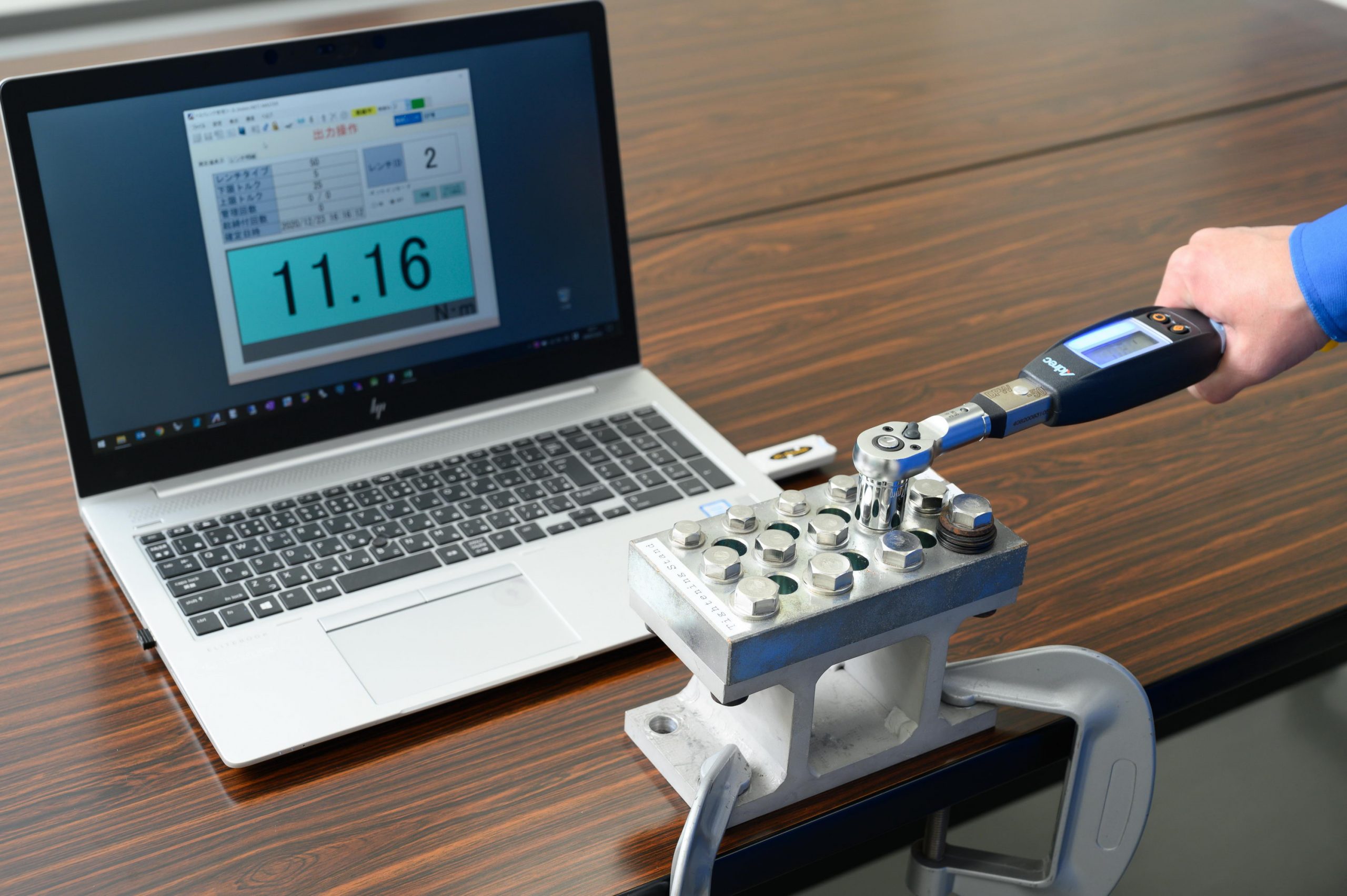

This is the least expensive product for sending and receiving data to and from the torque wrench via PC.
Compatible with USB A Male

ZC-401W

All items, from torque values to results, can be input directly into Excel.

ZC-601W

Successor model to ZC-501W.
The communication distance has been doubled while retaining the functions of the previous model!
A new, simpler communication format has been adopted.

ZC-501W Discontinued

Tightening torque values can be output via LAN.
Tightening results can also be output to signal tower lights or other devices.

ZC-101W Discontinued

In addition to communication with a PC, communication via RS232C is supported, and communication with a PLC (sequencer) is also possible.

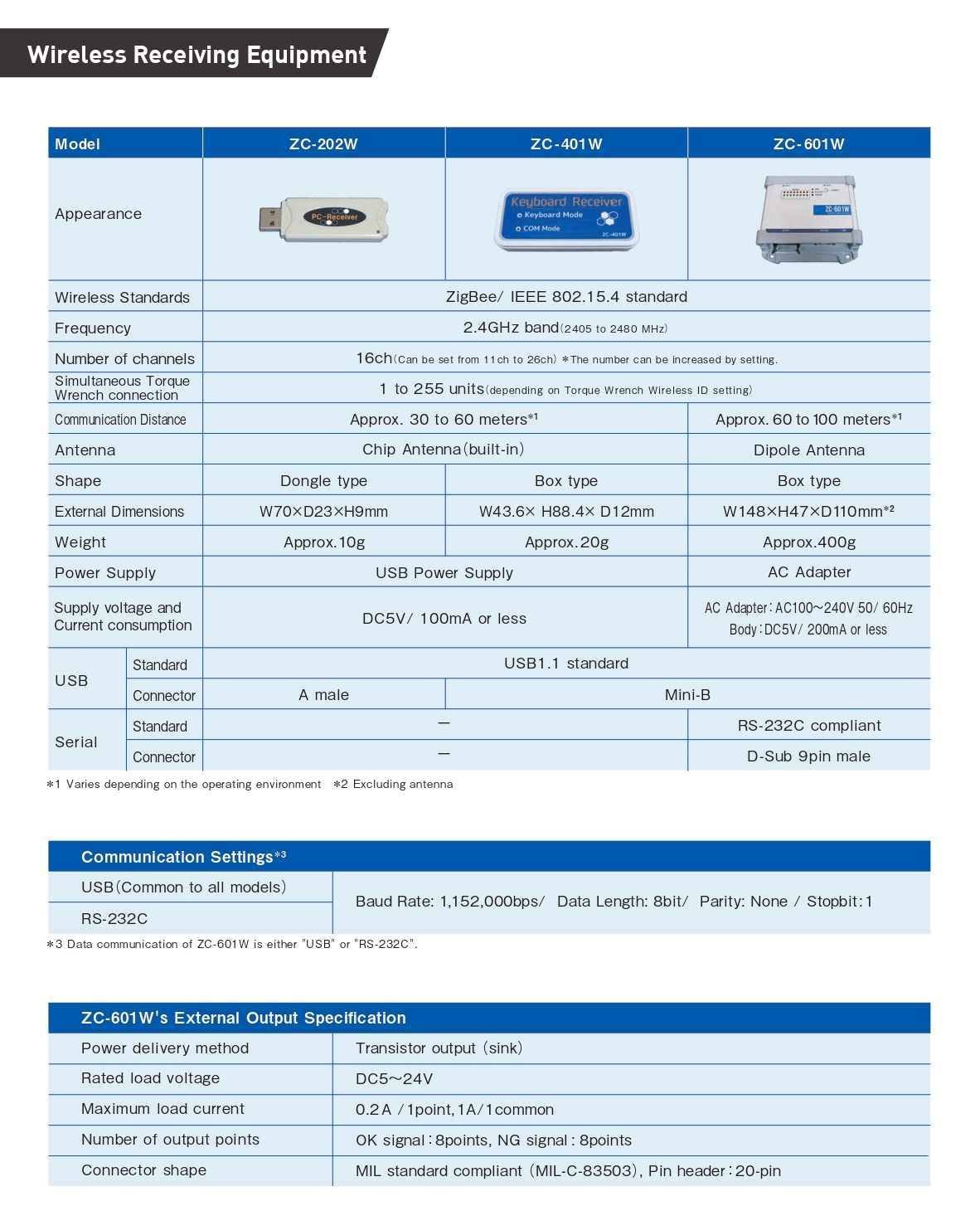

Wireless Specifications and Receiving Equipment

Option specifications

Model	Device Configuration	IEEE Standard	Frequency band	Communication distance (*Note 1)
＊＊＊-＊＊-ZE	Support for child units (1:N)	IEEE 802.15.4	2.4 GHz band	30～60 m

*Note 1: May vary depending on the environment of use.

Wireless Receiver

Equipment specifications [Models: ZC-101W, ZC-202W]

Power supply: PC power supply
Use: Enables communication with torque wrenches by connecting to a PC

Model	Standard	Features
ZC-101W	I/O: USB mini B, D-Sub 9-pin Shape: Box type Size: 67L x 67W x 28H	Support for early models, and PLC/Sequencers with no USB ports
ZC-202W	I/O: USB A Male Shape: USB dongle Size: 70L x 23W x 9H	Compatibility with ZC-101W and ZC-201W, small size and low price

Equipment specifications [ZC-401W]

Power supply: PC power supply
Use: Automatic input of torque values and other data directly into Excel

Model	Standard	Features
ZC-401W	I/O: USB A Male Shape: USB dongle Size: 70L x 23W x 9H	Direct input into Excel of data such as torque values, angle values, torque wrench serial numbers, tightening dates and times, and results (OK/NG). Communication with our free standard software by using the DIP switch.

Equipment specifications [ZC-601W]

Power supply: AC 100～240 V
Use：Enables linkage with PLCs via serial communication and external output of OK/NG signals.

Model	Standard	Features
ZC-601W	USB port Mini B 1-port, Baud rate 1,152,000 LAN connector RS232C D-Sub 9-pin (male)* Baud rate: 1,15200	Can be linked to PLC/sequencer via serial communication. OK/NG signals can be output externally. (up to 8 signals)

Customers who are considering purchasing

Many companies have already adopted our products and are using them in a wide variety of ways.

Please contact us first and we will create the optimal proposal for your company.
Online consultations are also available.
